What is Notching?

Commonly used pipe cutting methods include circular sawing for right-angle or angled cuts. When the pipe is not a straight pipe and has already been bent, notching is a crucial metal pipe processing technique. This involves using a specialized die to punch a notch of a specific shape at the end or side of the pipe. This process allows two or more pipes to fit together at a precise angle, an essential preparatory step before subsequent welding or assembly. If the method needs to be changed, arc punching or milling is typically used. Compared to traditional milling or grinding, notching offers advantages such as speed, precision, and cost-effectiveness, making it particularly suitable for mass production.

What materials and shapes are suitable for arc punching machines?

HoChier Machinery's arc notching machine is highly flexible and can handle a variety of materials and tube shapes:

Notch shape: Custom-cut V-shaped, U-shaped, beveled, or complex curved notches can be produced to ensure a perfect fit.
Applicable materials: Metal pipes such as carbon steel pipes, stainless steel pipes, aluminum pipes, and copper pipes.
Applicable pipe types: Round tubes, square tubes, rectangular tubes and various special-shaped tubes.
Applied to:Motorcycle frames, bicycle frames, automotive structural components, furniture fittings

Arc punching machine main products

① Double-Ended Arc Cutting Machine HC8819P | Double-Ended Arc Cutting Processing Equipment

Specifically designed for simultaneous arc cutting of both ends of metal pipe fittings.

Design for fixed-angle double-ended arc cut requirements

Suitable for:Motorcycles, bicycles and electric vehicles 👉 Learn more about double-end arc cutting machines

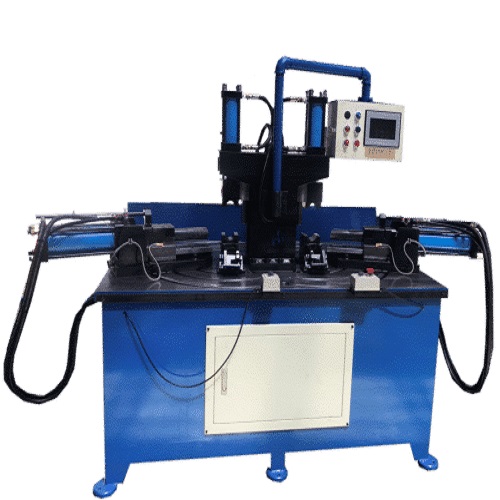

② Double-station arc punching machine HC8819M｜Metal pipe end arc cutting processing equipment

Specifically forThe pipe fitting end is machined with an arc-shaped opening.Automated or semi-automated equipment

It has two independent processing stations, which can perform processes such as arc punching, arc cutting, or punching simultaneously or rapidly and continuously.

Suitable for:Furniture manufacturing, medical equipment, vehicle manufacturing, construction and decoration 👉 Learn more about HC8819M details

─────────────────────────────────────────────────────────────────────────────────────────────────────────────

③ HC8813 Single-sided arc punching machineMetal tube end stamping equipment

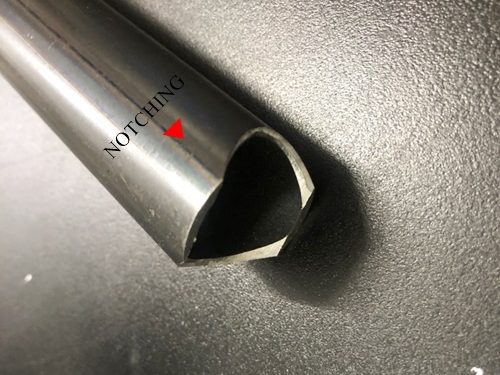

Single-sided arc punching machine(Also known as an arc cutting machine or single-head arc punching machine), it is specifically used for arc punching processing of pipe ends.

Capable of completing the arc-shaped cutting process of pipes in one go

Suitable for:Furniture manufacturing, construction engineering, vehicle parts 👉 Learn more about single-sided arc punching machines

④ HC8819T Dual-Station Arc Cutting Punching Machine｜Fitting curvature reduces welding material

Its main function is to simultaneously process both ends of a straight pipe.tangent arc(or arc-shaped opening) andpunchingdeal with

Combining the "curve cutting" and "punching" processes, users do not need to move materials between different machines.

Suitable for:Motorcycle/bicycle industry, furniture manufacturing, building structure, display racks/shelves

👉 Learn more about the HC8819T details

90° cutting arc

Double-station arc

Single-sided arc

Cutting and punching

Frequently Asked Questions (FAQ)

What are the advantages of an arc punching machine?

🔹 High precision: The precise arc notching improves the tightness of pipe welding and ensures welding strength better than simple cutting.
🔹Easier to weld after processing: After the end of the pipe fitting is machined into an arc shape, it can be directly matched with another pipe fitting.Accelerate subsequent welding and assembly efficiency.
🔹Multi-angle/Multi-process flexibility: Modern arc punching machines can achieve this. 0~180 degree angle adjustmentIt can quickly change angles and curves according to different design requirements.

What is the difference between arc cutting and laser cutting?

Advantages of arc punching machines: Compared with traditional hydraulic presses, they are lower in cost, cheaper, easier to operate, and safer.

Lasers are suitable for multi-functional and complex cutting, but for applications such as "post-bending processing, high-strength structural components, mass production, and thick pipe joining", arc cutting remains an irreplaceable key equipment.

Arc stamping offers unparalleled and irreplaceable advantages over laser processing in production scenarios demanding high volume, standardization, and extreme cost and efficiency requirements, as well as specific process needs that prohibit heat-affected zones and require integration with three-dimensional forming. This is why arc stamping equipment remains the mainstay on mature production lines in industries such as automobiles, bicycles, and furniture.

What problems does arc notching machining need to solve?

The purpose of arc notch is to create arc-shaped openings on straight pipes and to cut arc-shaped openings after bending pipes. This is generally used for pipe fittings that need to be welded; a perfect cut allows for welding and creating a finished product. Its applications are very wide-ranging. Therefore, pipe fittings that need to be welded often require arc-shaped openings, as the arc-shaped opening allows for a higher degree of weld tightness. This improves the weld tightness and structural quality of pipe fittings. It is suitable for pre-welding treatment and automated production of metal pipes and bends.

What materials can be processed?

We currently have considerable experience with iron pipes/iron fittings/black iron pipes. We are currently conducting tests on pipe fittings made of different materials.

What industries can arc punching machines be applied to?

Wide range of application industries

Transportation vehicles: Bicycle frames, electric motorcycle and motorbike frames, car seat brackets and exhaust pipes.
Metal furniture: Structural components such as steel pipe chairs, table legs, and bed frames.
Other applications: Tubular structure products such as sports equipment, strollers, and display racks.

►Go to the arc notching machine-Large Diameter/Square Tube/Special Arc Video Page

►Go to the arc notching machine-Double-ended arc video page

►Go to the arc notching machine-Single-sided arc cutting video page
